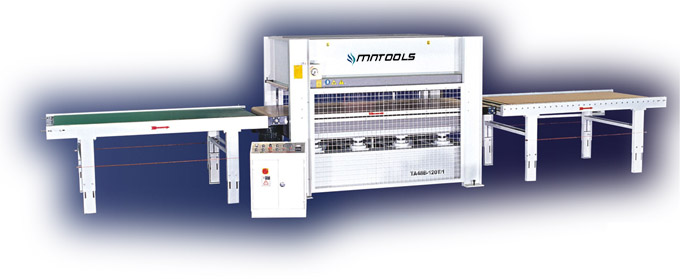

 Short cycle lamination hot press |
 |
| |
Model No. |
MTTA48B-120T1 |
MTTA512B-200T1 |
Working pressure |
120T (3.7kg/cm2) |
200T (3.5kg/cm2) |
Platen dimension |
1300x2500x42mm |
1600x3600x52mm |
Opening between platen |
250mm |
250mm |
Qty and Dia. of oil cylinder |
8pcs x Ф100mm |
8pcs x Ф125mm |
Closing speed |
20-60mm/ s |
20-60mm/ s |
Rated oil pressure |
20Mpa |
20Mpa |
Feeding speed |
15m/ min |
15m/ min |
Max. temperautre |
120℃ |
120℃ |
Heating method |
Electricity heating/ power 45kw |
Electricity heating/ power 45kw |
Overall size |
8500x1800x2150mm |
8500x1800x2150mm |
Net weight |
9T |
11T |
Installed power |
10kw |
10kw |
|
|
|
|
